OTM Scrap Pick Up Machine - No Longer in Production

Model # SP-1

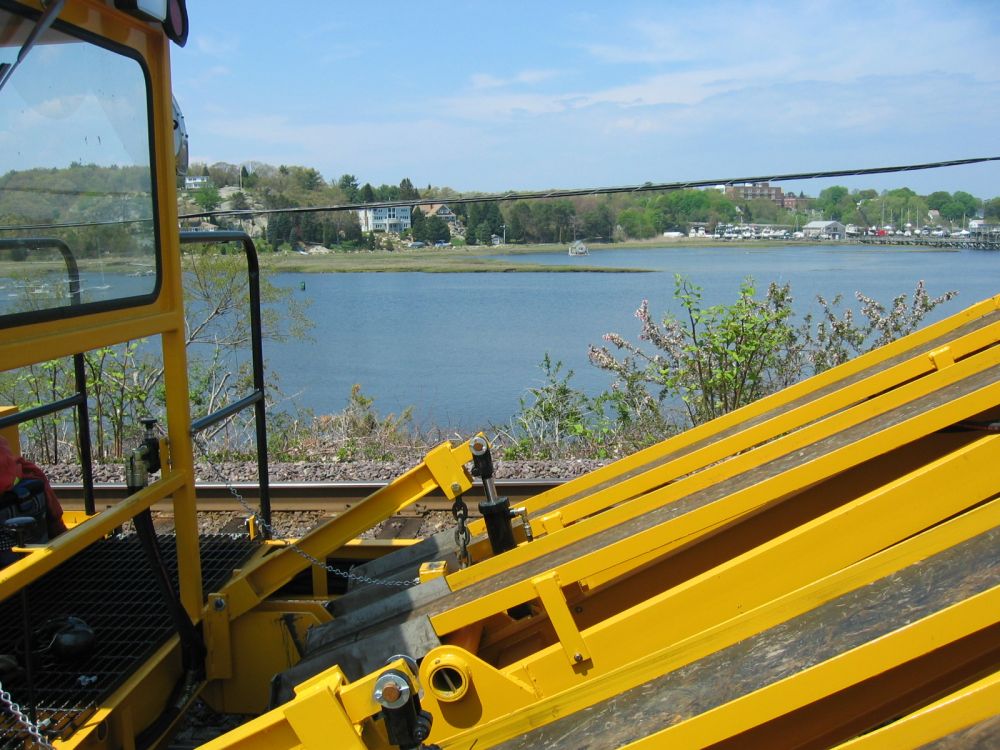

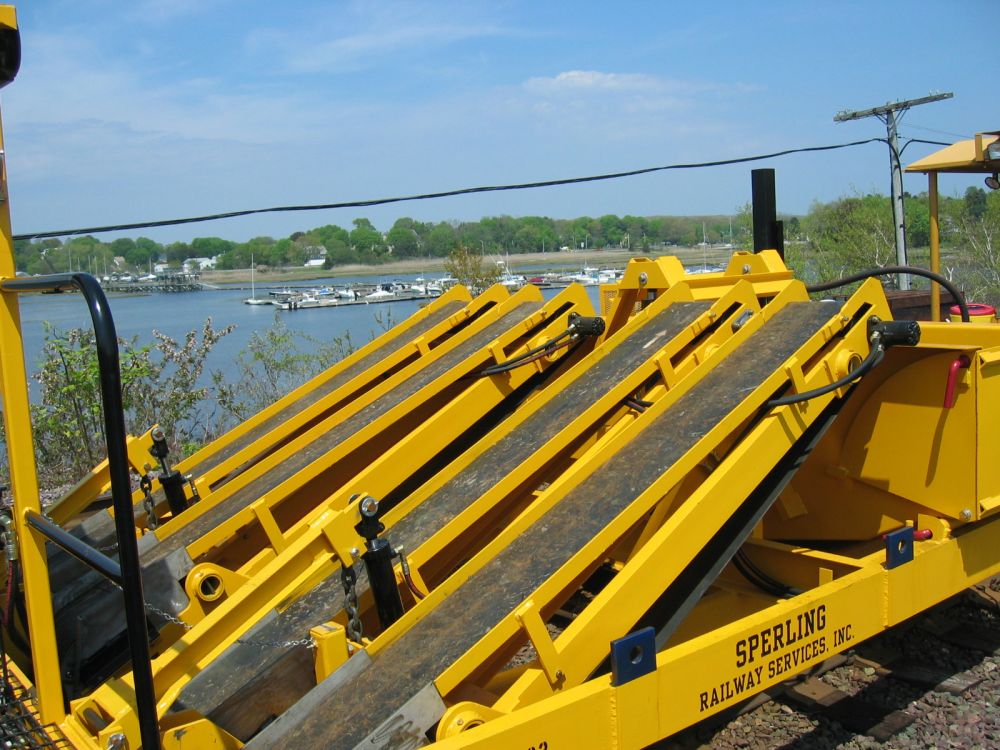

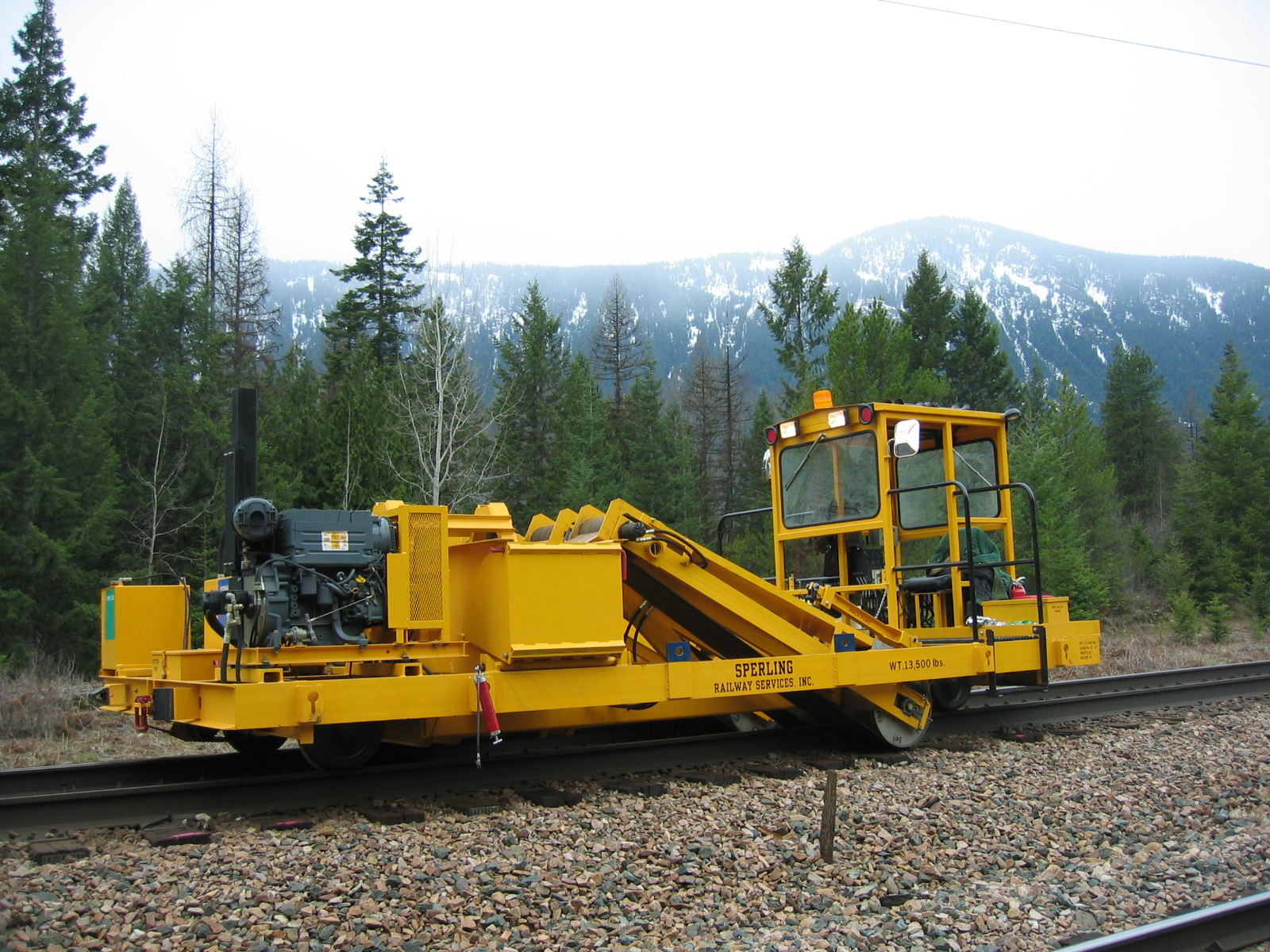

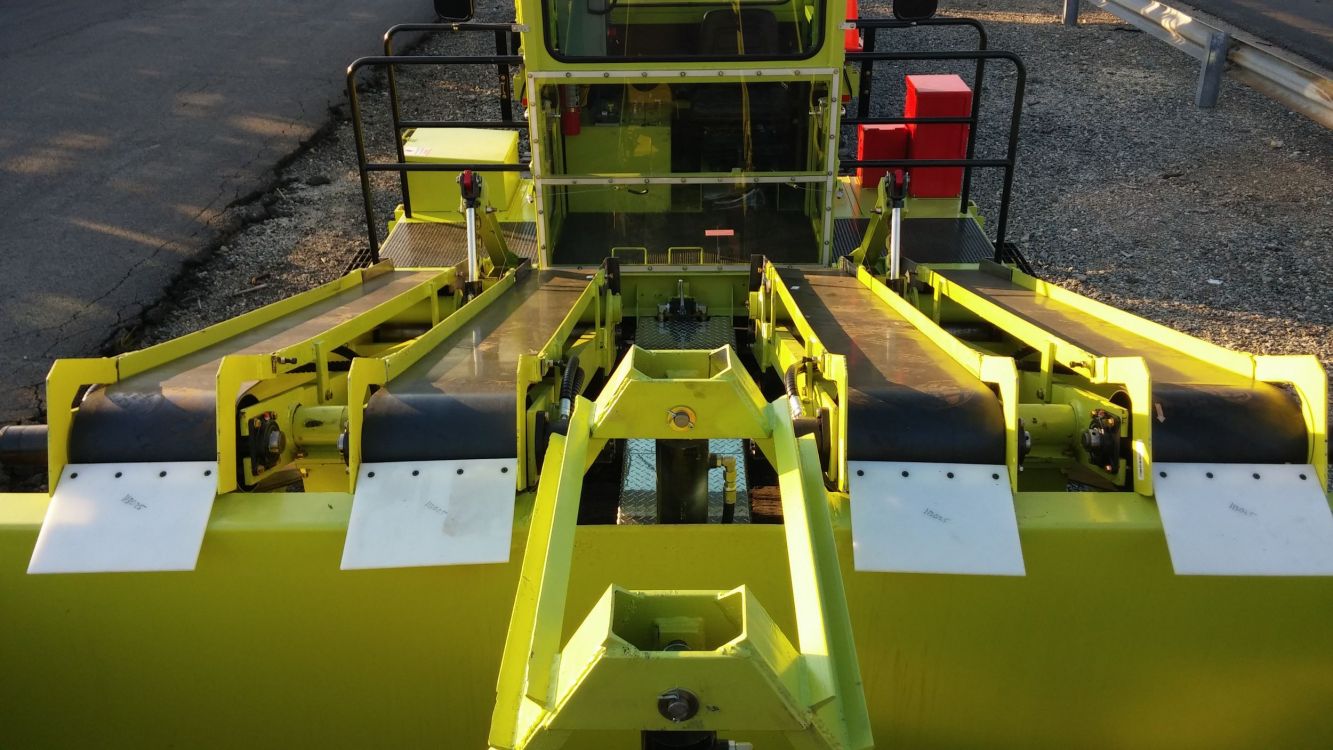

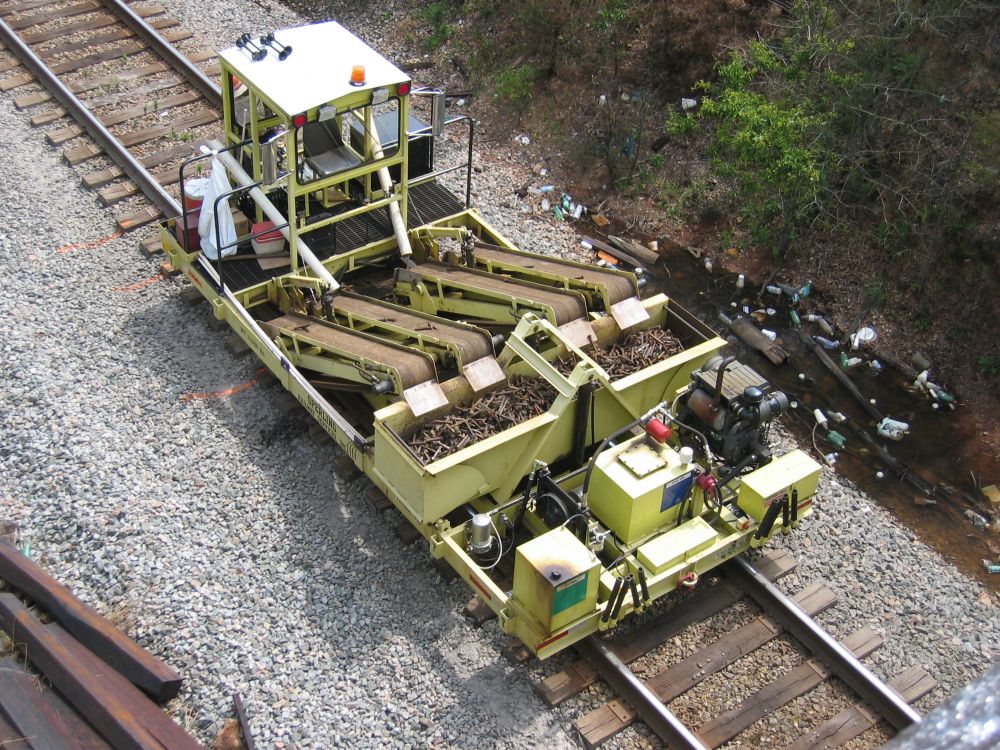

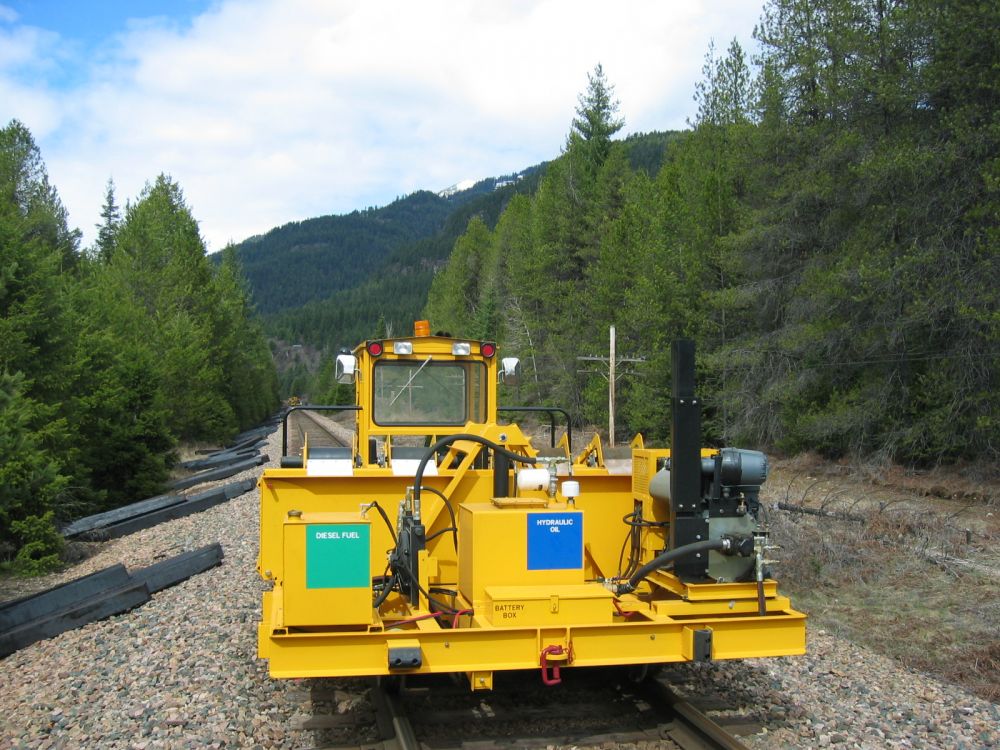

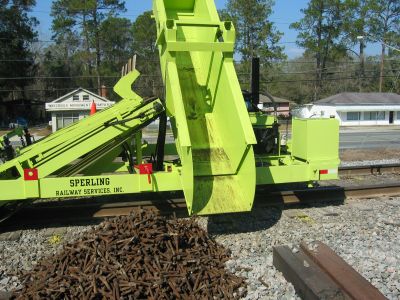

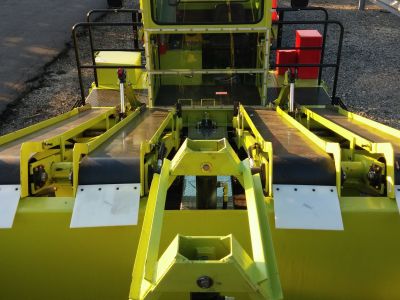

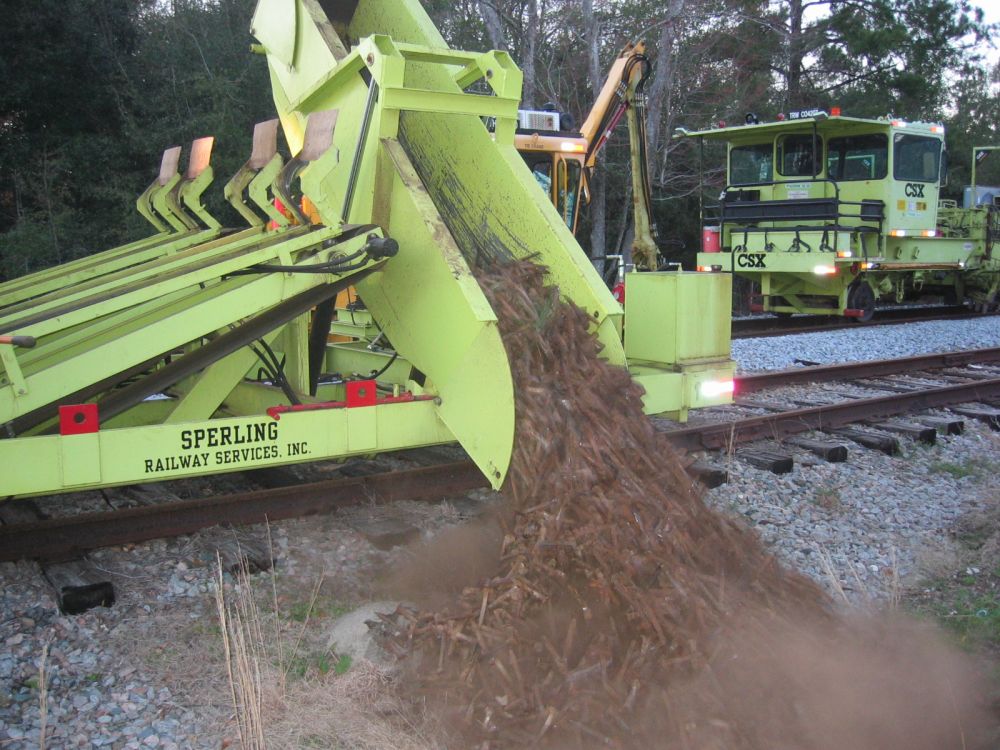

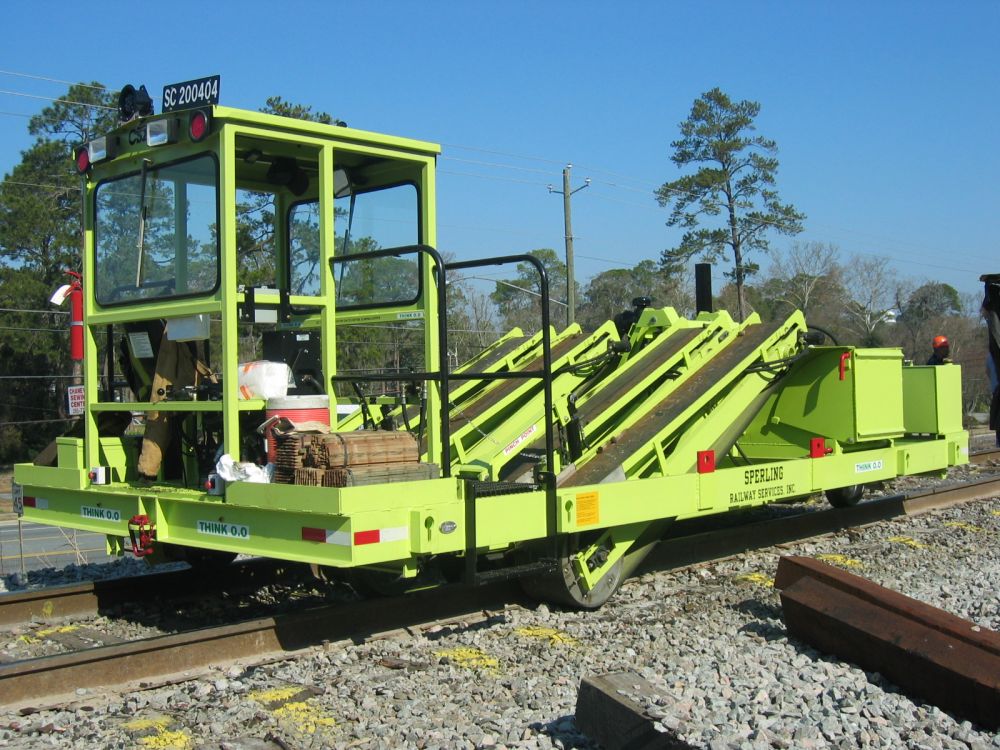

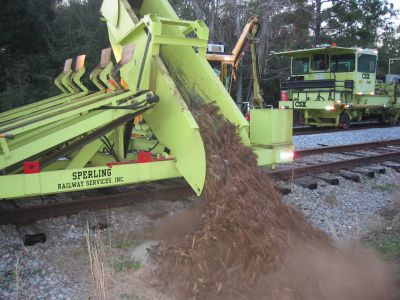

The OTMR is a 4 belt scrap pick up machine used to pick up OTM (spikes, anchors, and clips) in a production tie or rail gang where both rails are in place. This machine utilizes 4 conveyors with permanent magnet pick up drums that feed into a 46 ft3 hopper which can be dumped on either side of the track. The machine has an open cab where the operator can be seated while operating the machine and still have view of the pick up belts. This machine is no longer in production.

Cab: Open

Hopper Capacity: 46 ft3

Length: 21' 6"

Width: 10'

Height (Above Top of Rail): 8'

Weight: 13,500 lbs.
